nova • orthotec | ORTHOPÄDIE MANUFAKTUR | Ralph Seefeld

Willkommen bei der nova-orthotec Manufaktur für Orthopädie in Berlin. Auf den folgenden Seiten zeigen wir Euch, was Euch bei uns erwartet, wer wir sind, warum wir tun was wir tun - und warum unsere maßangefertigten Orthesen, Fuß- und Handschienen für Kinder und Erwachsene etwas ganz Besonderes sind.


OUR PRODUCTS



Our orthoses are made of many components, individually and by hand down to the smallest detail.

See a few of our product examples below:


Ralph Seefeld Orthese ©2015


Nancy Hylton OrthesES –

an American physiotherapist turned the world of orthotics on its head in the 1990s. Today, her ideas for tailor made manufacturing are a central aspect of the world of ortheses - and a very important foundation of our work.

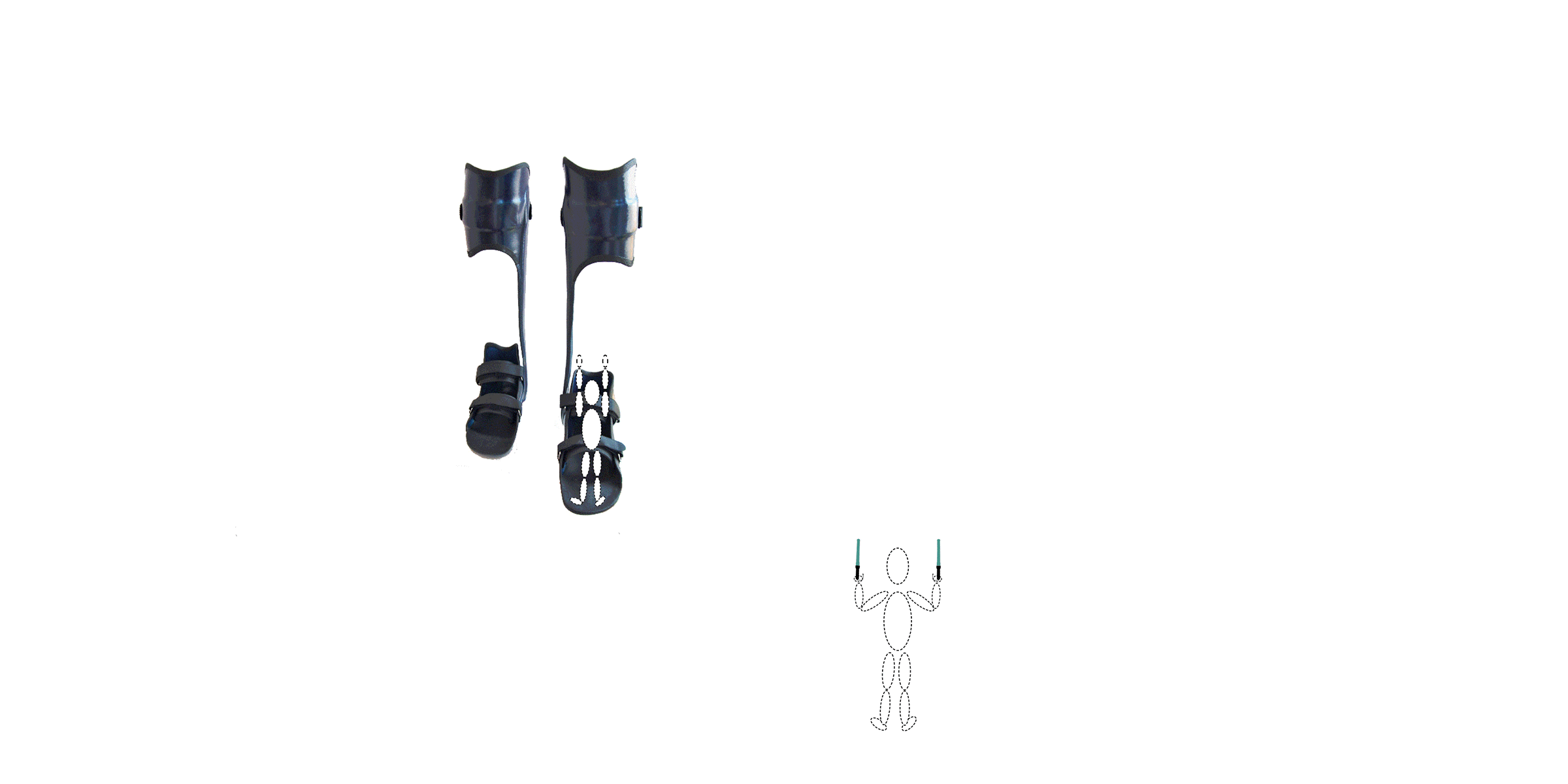

Stability in Standing:

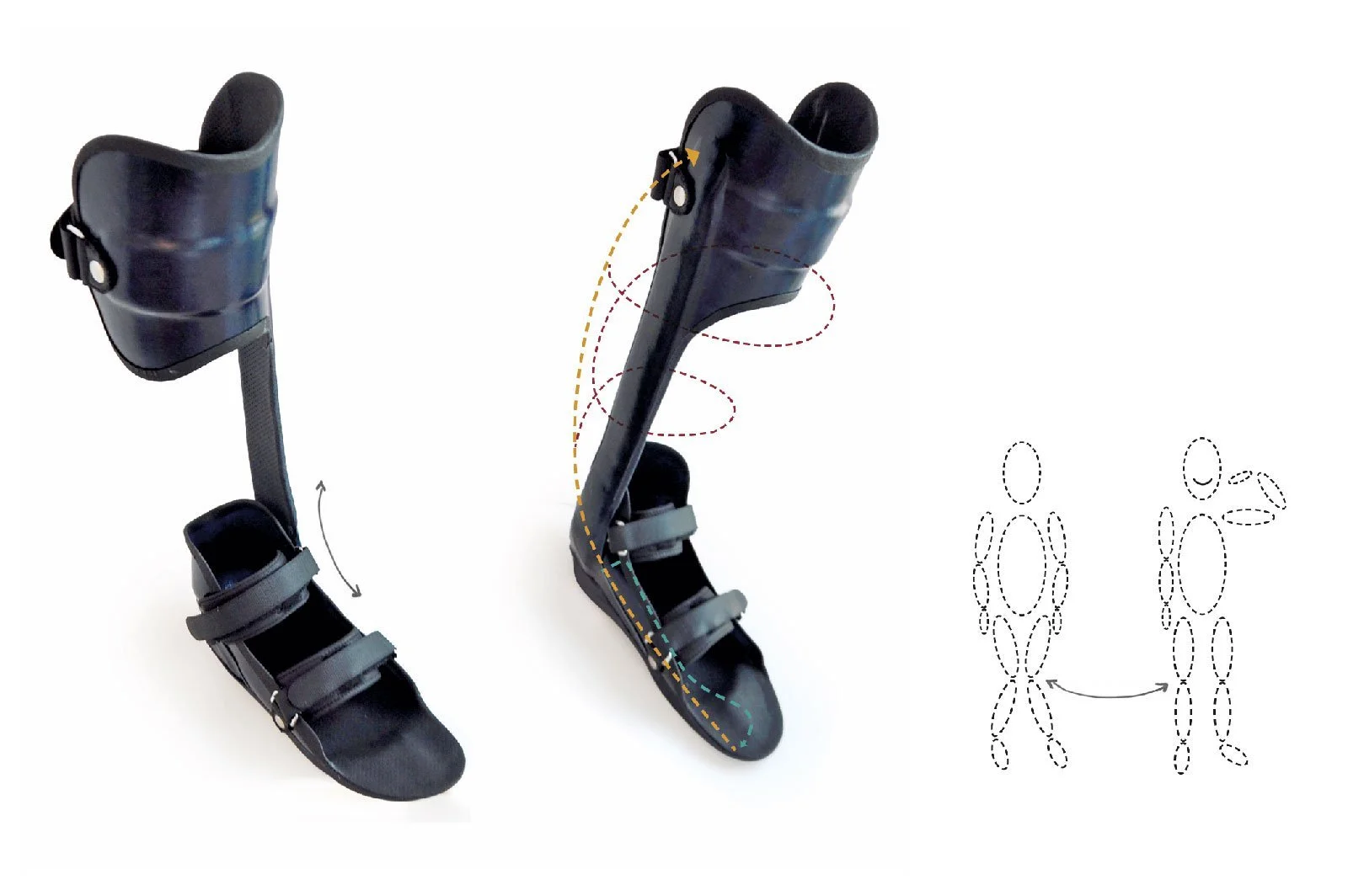

AFO with a Medially Vertically Guided Carbon Leaf Spring

Once again, we’ve discovered something remarkable: an ankle-foot orthosis (AFO) featuring a medially positioned, vertically guided carbon leaf spring. Custom-made to fit your anatomy, this AFO harnesses ground reaction forces to noticeably improve gait stability and efficiency. Thanks to its innovative construction, it enables a highly dynamic rollover during the push-off phase via the big toe joint.

During heel strike, the ground reaction force is transmitted directly to your knee joint (medial condyle), providing immediate feedback and enhancing your sense of secure contact with the ground. The orthosis remains firm and stable, bearing your full body weight. As you roll forward, the orthosis gently twists, the spring yields, and your knee joint is guided smoothly over your big toe joint into the propulsion phase. This design ensures improved ground contact and a significantly more secure stance.

The result? Not only a more stable gait and enhanced standing security, but also a corrective influence on valgus (knock-knee) alignment.

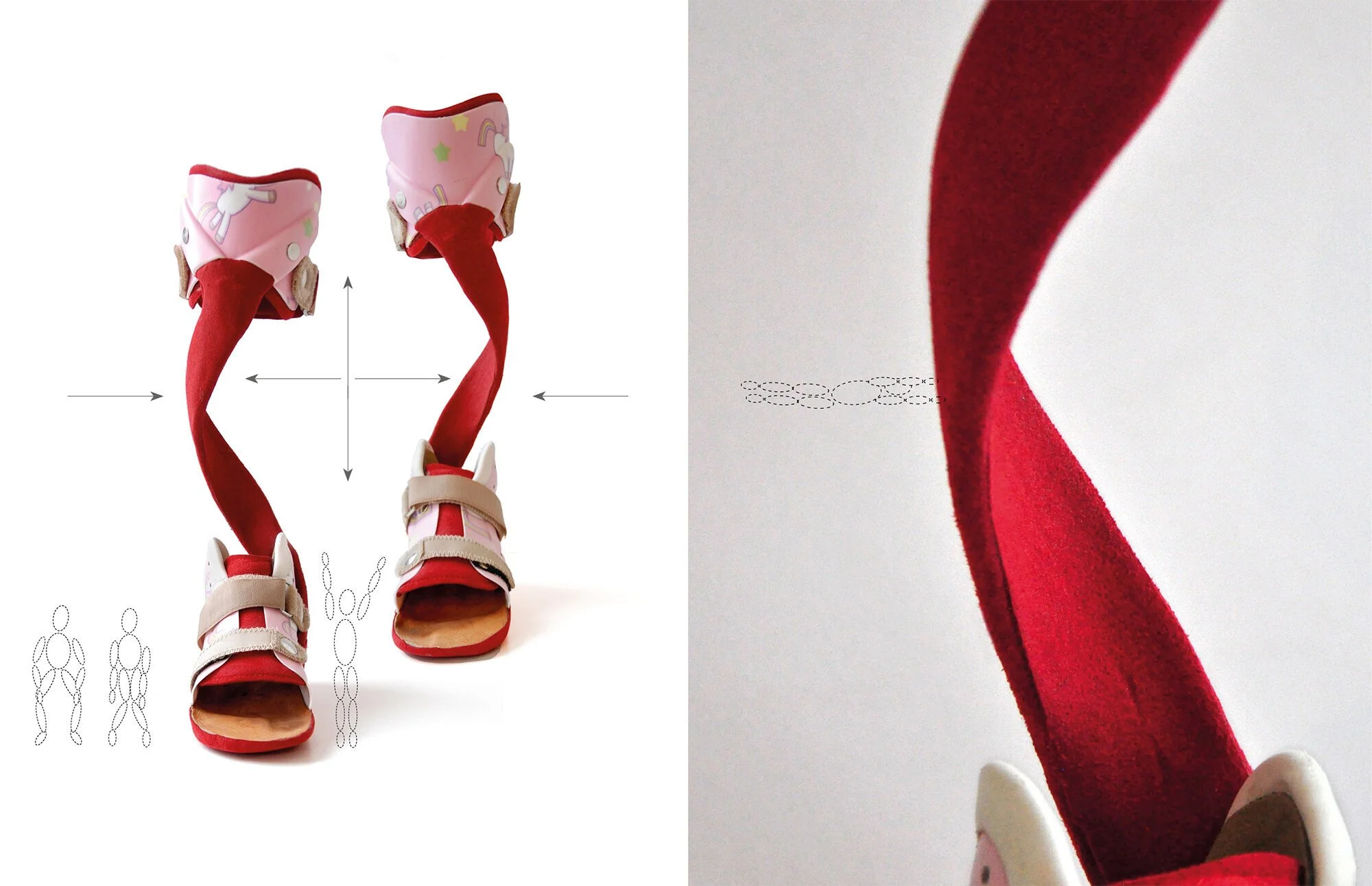

Carbon Spiral Orthosis with Ventral Knee Support

This lower leg orthosis features a carbon spiral spring with anterior (ventral) knee support. The design aims to assist knee extension and may influence frontal plane knee alignment by counteracting varus (bow-leg) or valgus (knock-knee) tendencies, depending on the individual presentation.

In fabrication, particular attention is given to the eccentric activation of the pretibial musculature and its neuromuscular control. Depending on individual requirements, the spring can be guided along the ankle region to support heel strike. Joint movement is not restricted, but rather guided through the structure of the orthosis.


LOWER LIMB / Thigh OrtheseS

This lower limb / thigh orthosis has a powerfull extension force – and an innovative extension with easy-to-use insertion mechanism*:
The thigh orthosis can be put on and taken off within a very short time - even while sitting or lying down.
This makes it easier and faster to stand up with optimal straightening and correction of the entire leg. The lower limb / thigh orthosis is easy to use,
cosmetically unobtrusive and avoids "everyday problems".



* made with orthotic system knee joint; Neuroswing ankle joint

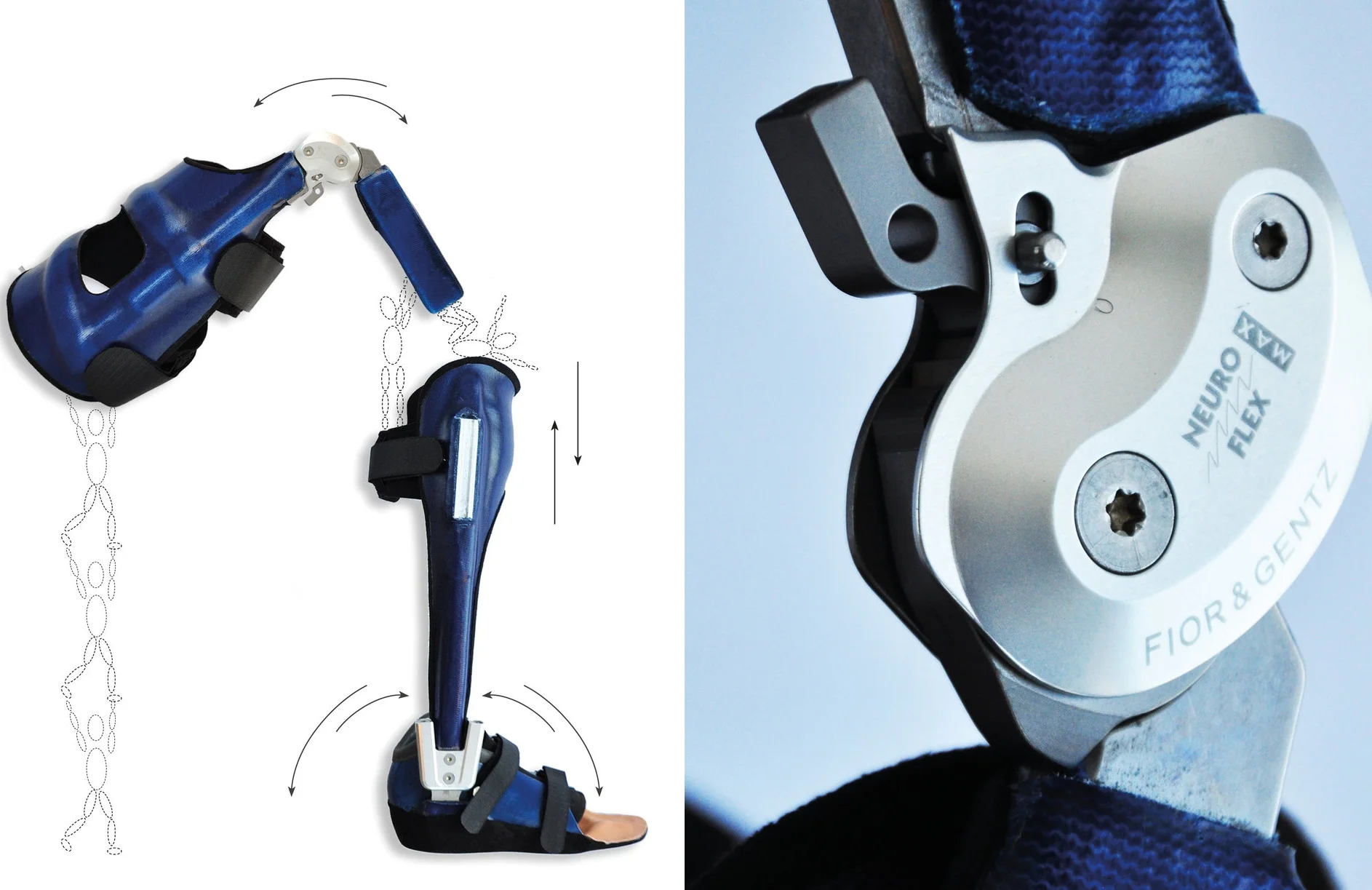

Lower limb / thigh orthosis – made with a Neuroswing ankle joint (Fior & Gentz)
adjustable flexibility and force.





Thigh orthosis for an active straightening using the extension of the knees.


Very flexible and combinable upper / lower limb orthosis with removable thigh part and ankle joint of Neuro Swing, which has a lockable knee joint and an adjustable "Swiss lock". It can be extended with a gas pressure spring to compensate deficits.


Our products help you to get back on your feet.


Foot-orthesis with a dynamic carbon suspension.



Lower leg orthosis with a removable, washable inner lining.

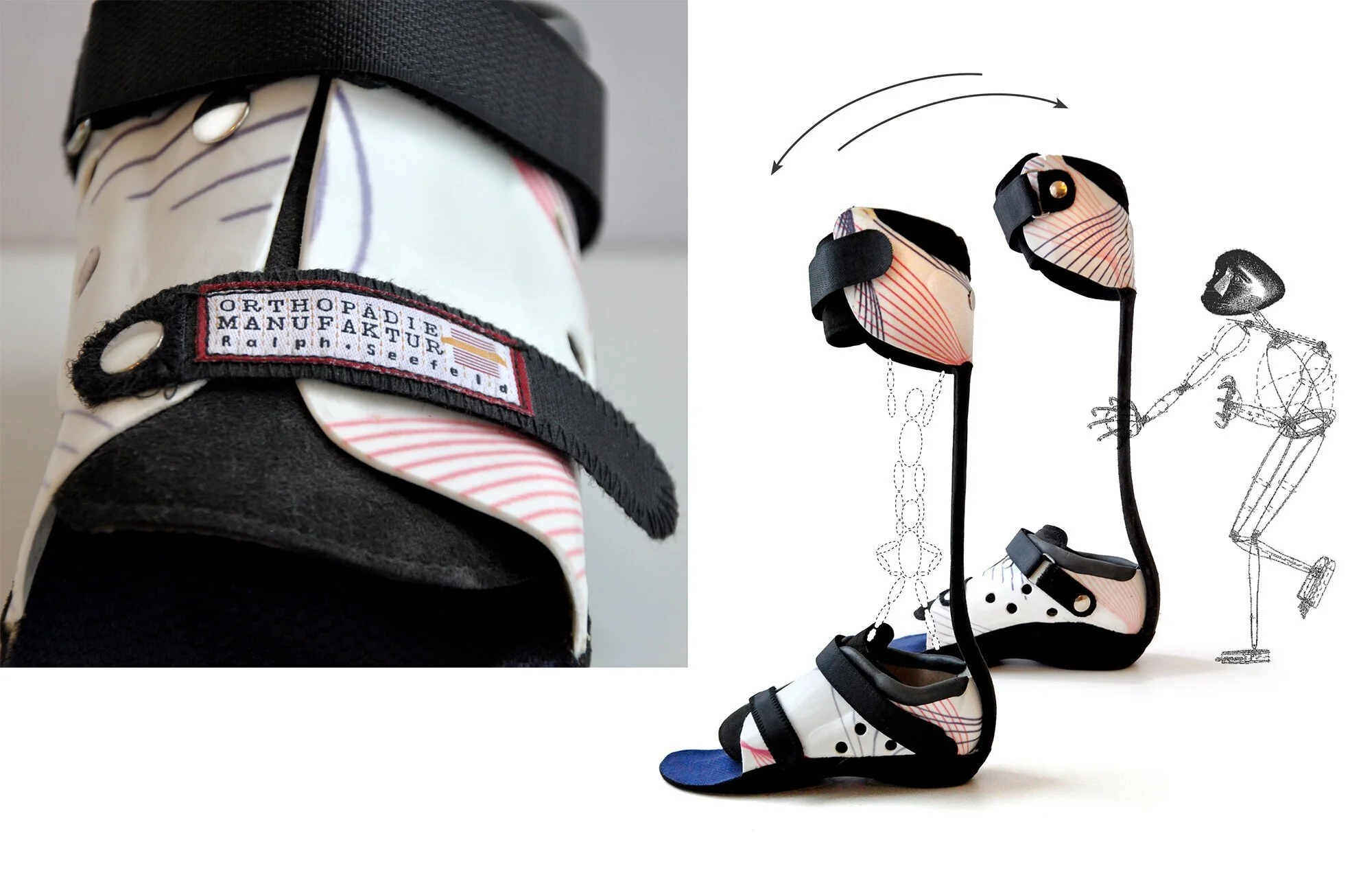

Lower Leg Orthosis with Dorsal Carbon Spring

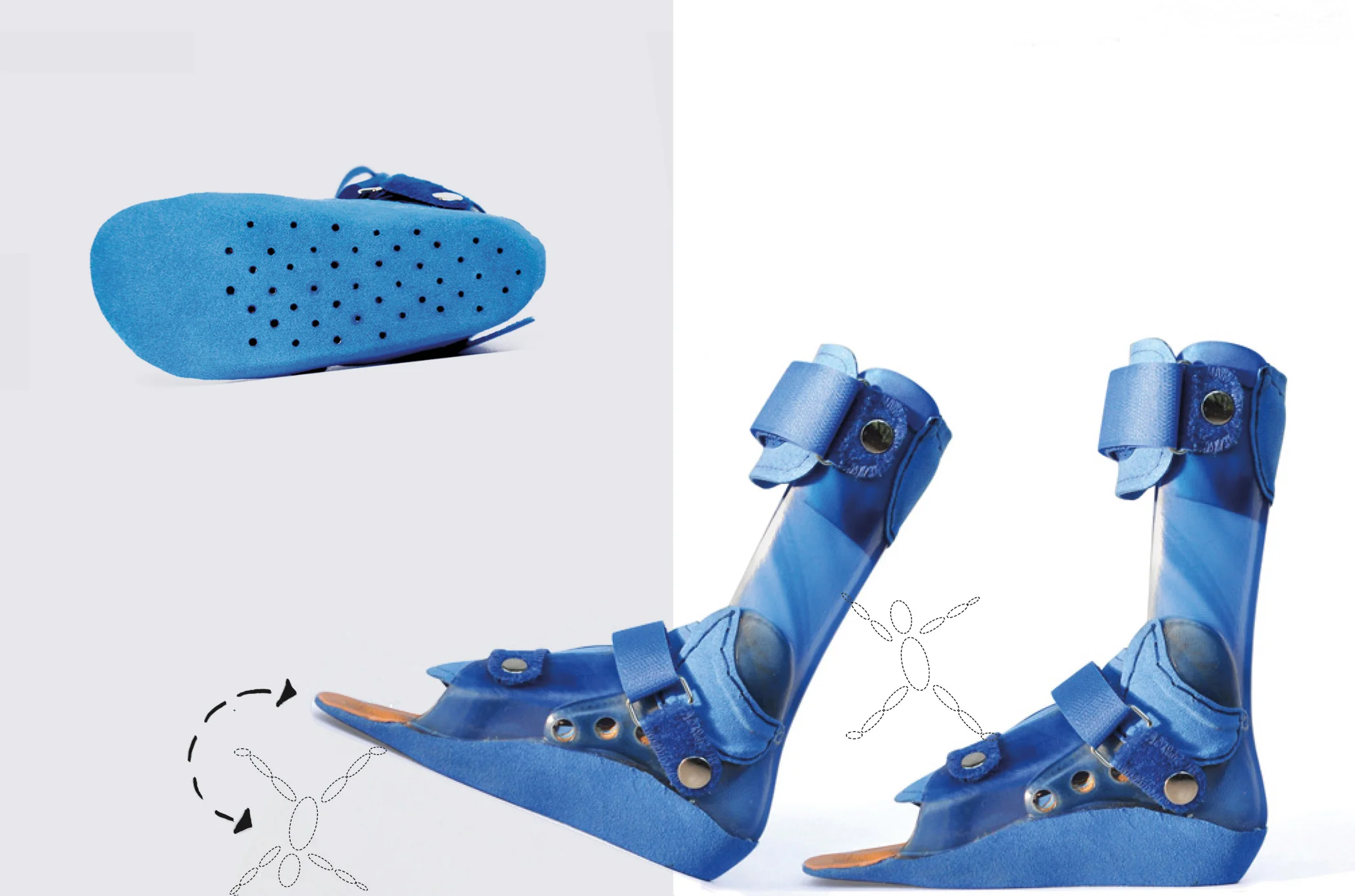

Lower Leg Orthosis with Partially Articulated Ankle Joint – suppresses plantarflexion (equinus deformity) and permits normal gait rollover.

Includes ventilation openings and durable, stable closures.


Lower leg orthosis with carbon suspension and supporting ventral knee-system.

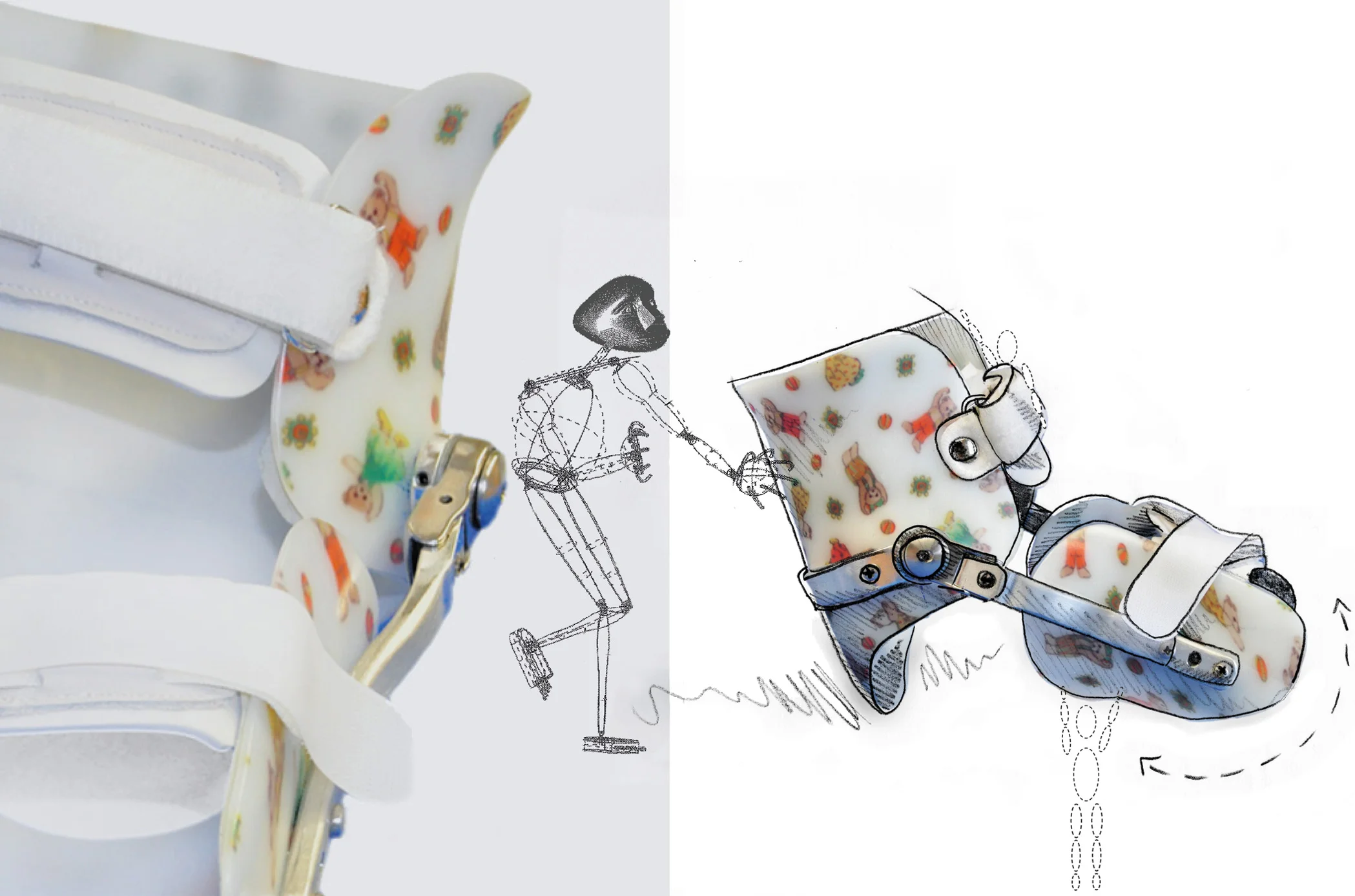

Flexible hip abduction ortheses to adjust the hip joint in case of imminent ligature.





Forearm/hand orthosis (splint) made of particularly flexible materials, such as silicone, rubber, leather. Very comfortable to wear.
